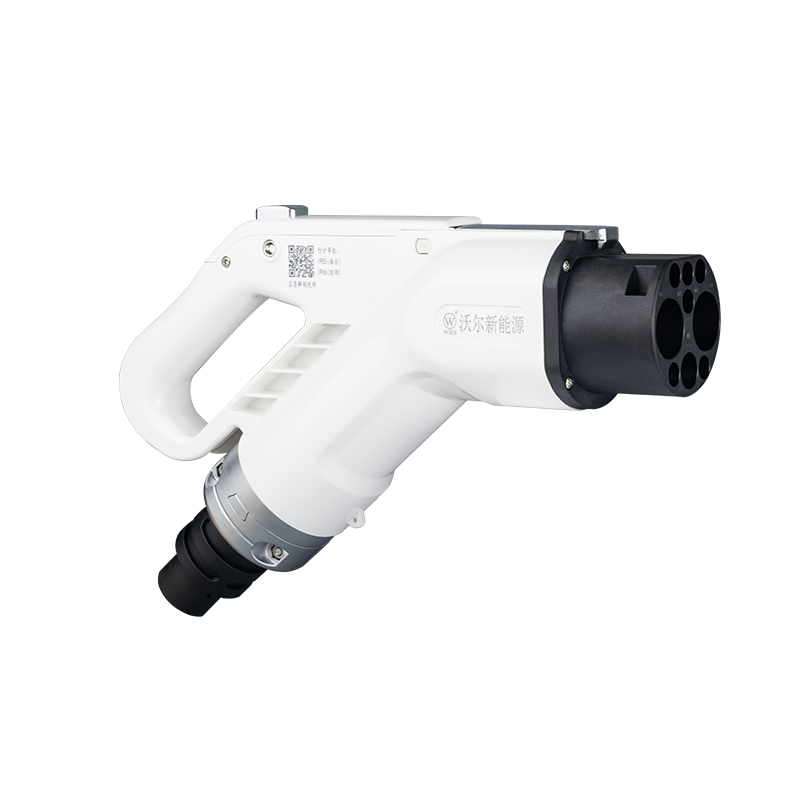

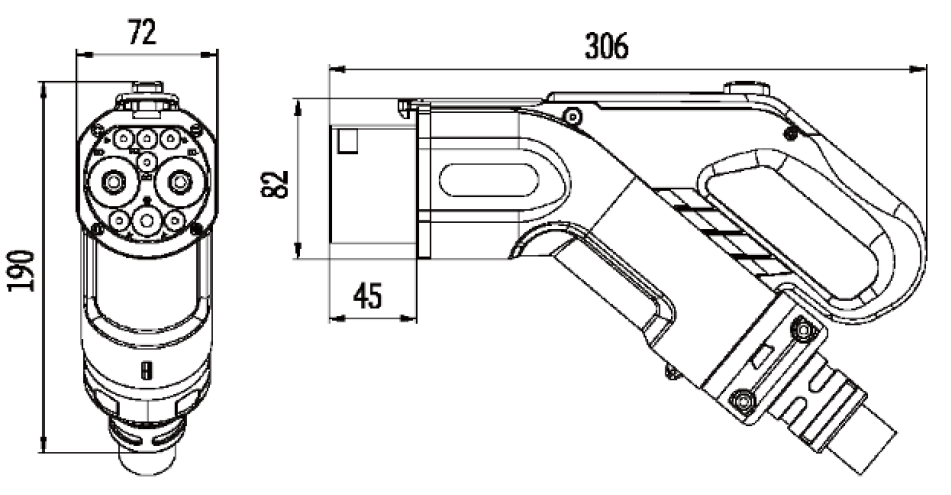

GB/T W-Ⅳ. high power oil-cooled charging connector
| Item No : |
WOER-GB-C-DCXXX-07-LC1
|
| Color : | White |
| Certification : | GB/T 20234.3-2023 |
| CQC : | YES |
| Rated Current : | 400A/500A/600A/800A |
Related Products

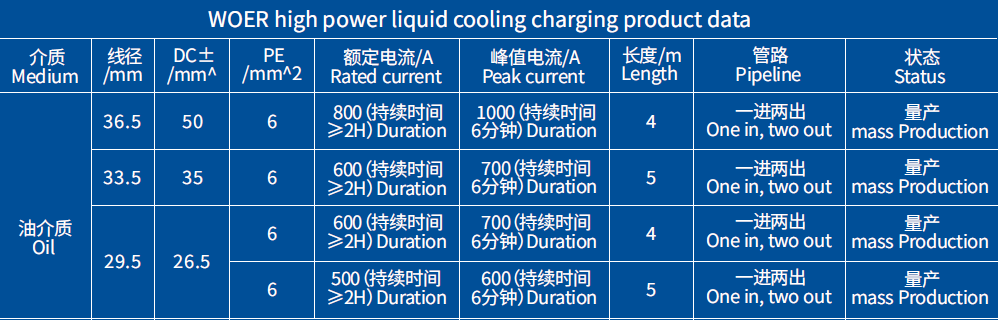

| System simulation diagram of power charging connector | Temperature rise diagram of cable and charging connector | |
 |
 |
|
About Our Products 'Certificate: Woer New Energy has a professional technical team with hundreds staff, applying for more than 300 inventions and practical patents, which has passed ISO9001、ISO14001,IATF16949, UL, CSA,TUV and SGS. It is committed to providing customers with more professional products and services.If you need any certificate document, please feel free to contact us .
|
 |
| Production Process | ||||
|
Cutting cables |
Stripping wire |
Mold forming |
Laser printing |
Main line terminal |
|
Signal line terminal |
Visual inspection |
Performance testing |
Packaging and weighing |
Warehousing |
| Rated Voltage | 1000V/1500V DC |
| Rated Current | 400A/500A/600A/800A |
| Withstand Voltage | 3500V/4000V AC |
| Maximum peak current | 500A/600A/700A/1000A |
| Insulation Resistance | ≥500MΩ |
| Operating Temperature | -30℃~50℃ |
| Protection Degree | (inside the charging connector)IPX6/ (mated) IP55 |
| Flame Retardant Grade | Ul94 V-0 |
| Insertion and Separation Forces | F<140N |
| Mechanical Lifetime | ≥10000 TIMES |
| Cooling Power Size | 2.4KW |
| Cooling Liquid Flow | 2-6LPM |
| Terminal Working Temperature | 90℃ |
| Maximum Allowable Pressure | 0.6 Mpa Max |
|
