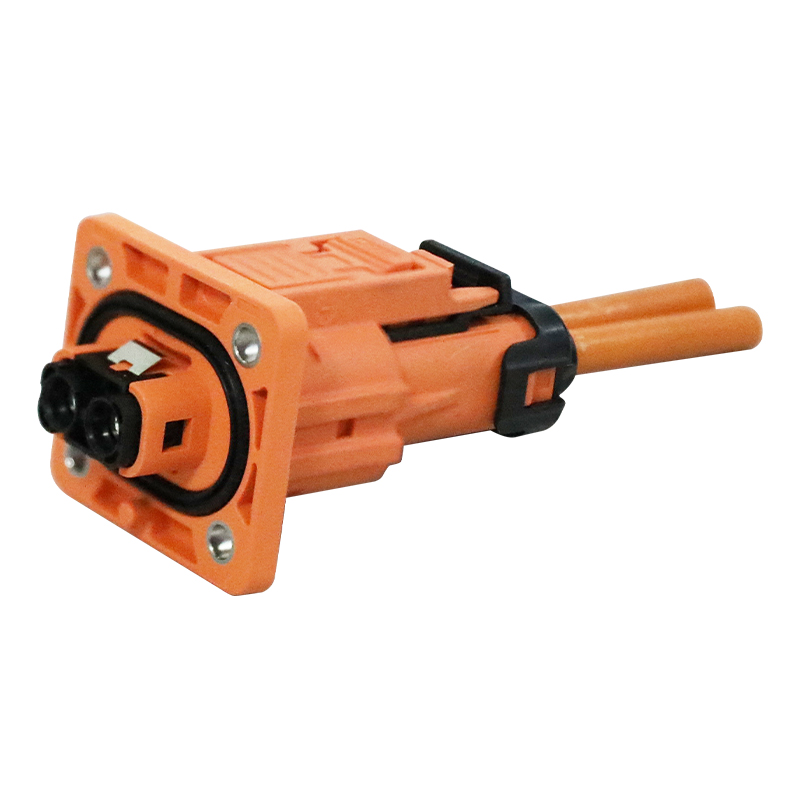

WOER HV280L series with high voltage interlock connector
HV280L series mainly applies to high voltage and low current EV, air conditioner,PTC,DC/DC,Oil Pump, Air Pump, Auto defrost, AC charging, etc.
| Item No : | HV280L |
| Adaptive vehicle type : |
Main push passenger car |
| CQC : | 3 |
| Suitable wiring diameter : | 2.5mm²~6mm² |
| The protection grades: | IP67 |
Related Products
Product characteristic
This is a plastic shell connector with small size,low weight， easy installation，and good reliability.It contains many preventing mistaken key-press,wires size more option,360° shielded.
|
Two cores plug dimension
|
Three cores plug dimension
|
|
Two cores receptacle dimension
|
Three cores receptacle dimension
|
|
Recommended install trepanning size(panel thickness suggested:3.5mm min) hole dimension of installation panel
|
Recommended install trepanning size(panel thickness suggested:3.5mm min) Recommended trepanning dimension for panel
|
| Production Process | ||||
|
Injection workshop |
Mixing workshop |
Machining workshop |
Stranded cabling |
Heat shrink tube production |
|
Moulding workshop |
Rubber injection workshop |
Stamping workshop |
Irradiation workshop |
Embossing tube production |
|
Electrical characteristic |
Other parameters |
Material and Plating |
|||
|
Rated Voltage |
800V DC |
Protection |
IP67 |
Shell material |
PA66+GF25 |
|
Rated current (ambient temperature 30℃) |
20A (Fit for：2.5mm²) 25A (Fit for：4mm²) 40A (Fit for：6mm²) |
Temperature range |
-40℃〜+125℃ |
Flammability Rate |
UL94 V-0 |
|
Insulation resistance |
≥2000MΩ(Normalcy) |
Cores |
Two Pins, Three Pins |
Pin and Contact Material |
Copper Alloy |
|
Withstand Voltage |
2750V AC |
Wire size |
2.5〜6mm² |
Plating |
Silvering/Nickeling |
|
Electromagnetic Shielding |
360°Shielding |
Seals |
Silicon Rubber |
||
|
Minimum Mating Cycles |
≥200(Times) |
|
|||
|
① Perfect quality management and process production. |
 |
|
|
② A professional team engaged in the production and research and development of this product for more than 12 years. |
|
③ A first-class and complete production workshop and equipment. |
 |
|
|
④ Comprehensive product testing equipment. We have the first authorized UL sighting laboratory in China. |
